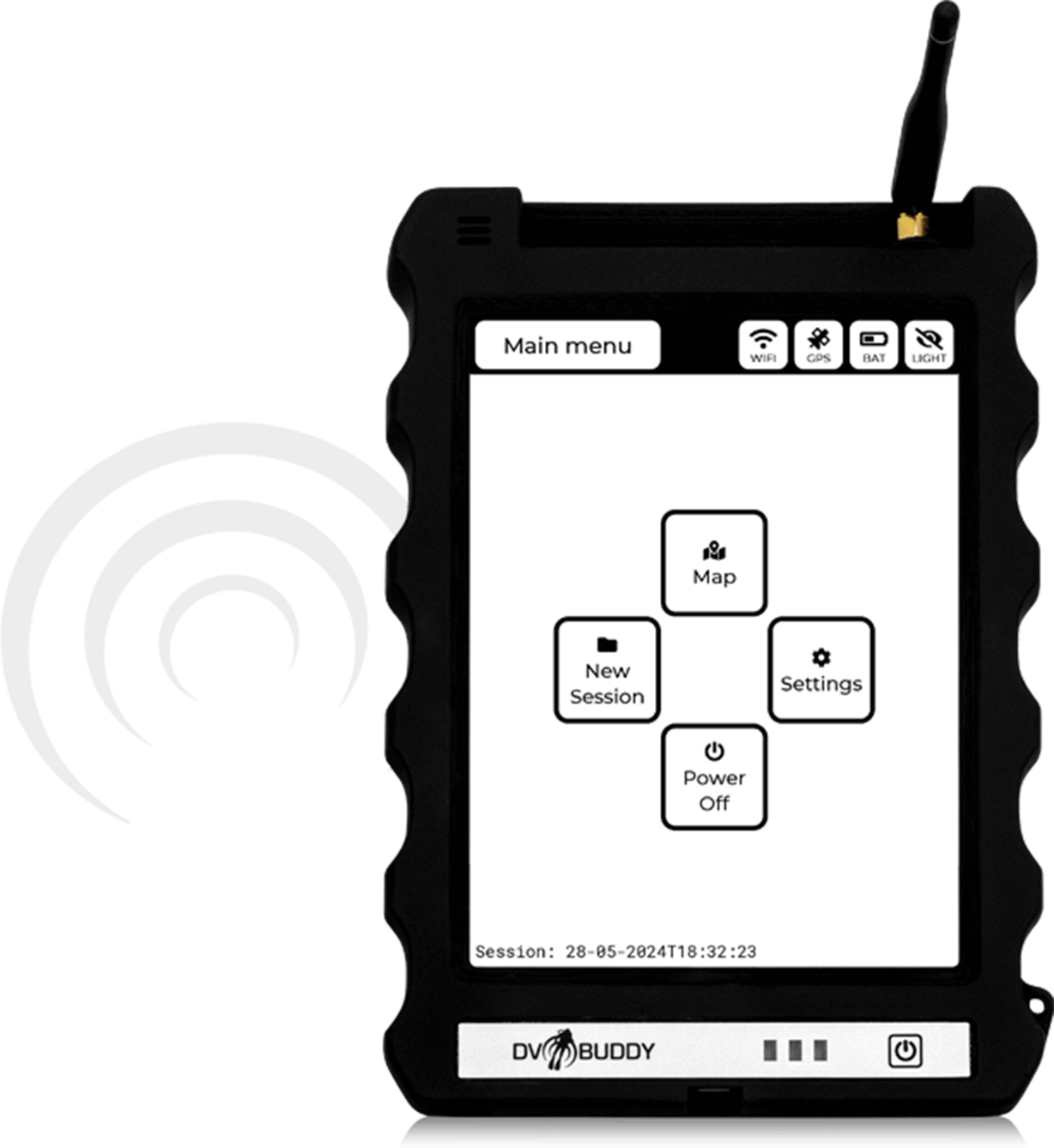

Boat unit
Boat unit serves as the central component of the DV Buddy localization system. Its primary function is to receive and display information from Diver Unit regarding diver position above the surface. It displays the diver's real-time position, distance from boat, azimuth. BU includes alarm signaling upon receiving a DU request to pick up the diver after the dive.
BU creates, maintains a list of divers (DU) involved in the dive session and continually updating it. BU configures DU technical parameters for communication BU-DU base on region settled in Setting menu.BU creates, maintains a list of divers (DU) involved in the dive session and continually updating it. BU configures DU technical parameters for communication BU-DU base on region settled in Setting menu.
Communication between BU and DU is realized through Blue Tooth and LoRa technology which is internal part of both units - BU and DU. BU is able to communicate with many assigned DU, typically tenths of DU per one BU.
Switch positions

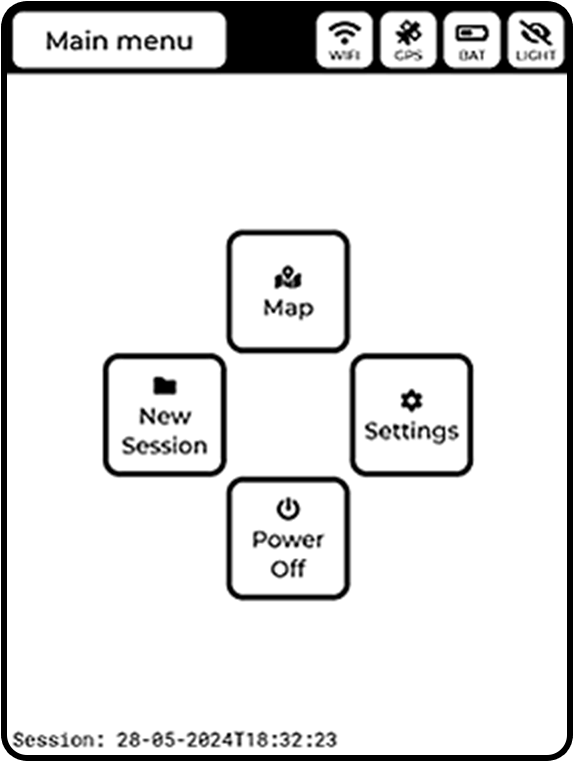

Main menu screen
Main menu screen
On the top status bar are indications for WIFI, GPS, battery status, and display backlight.
Map - displays the positions of divers, distances, and azimuth from the boat
Settings - language customization, system parameterization
New session - Creating a new diving session. This operation will end and delete the data from the previous session and create a new, empty session for the next dive
Power off - sleeping mode of BU

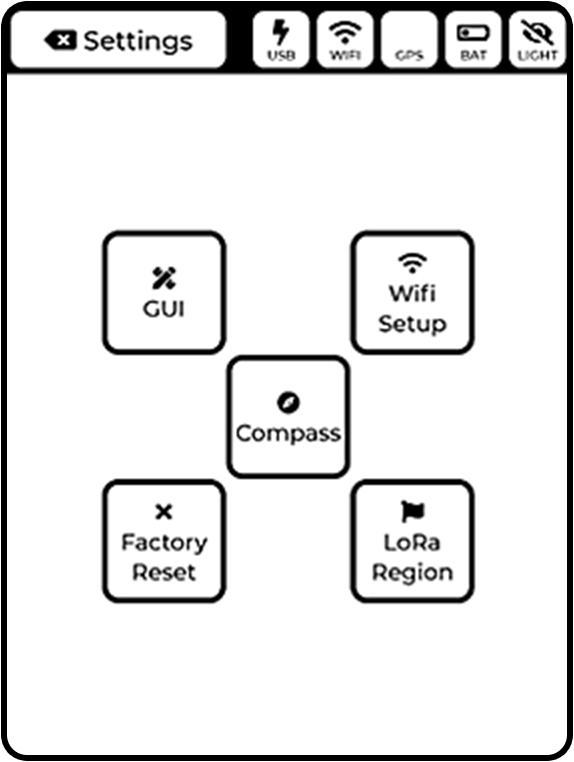

Setting
Setting
GUI - parametrization of graphic, presentation environment
WIFI - parameterization of WIFI connectivity
Compass - calibration of internal compass
Region - system support overall 8 languages, and many LoRa standards for different regions
Factory reset - reset BU into original, factory set up. All client data will be destroyed

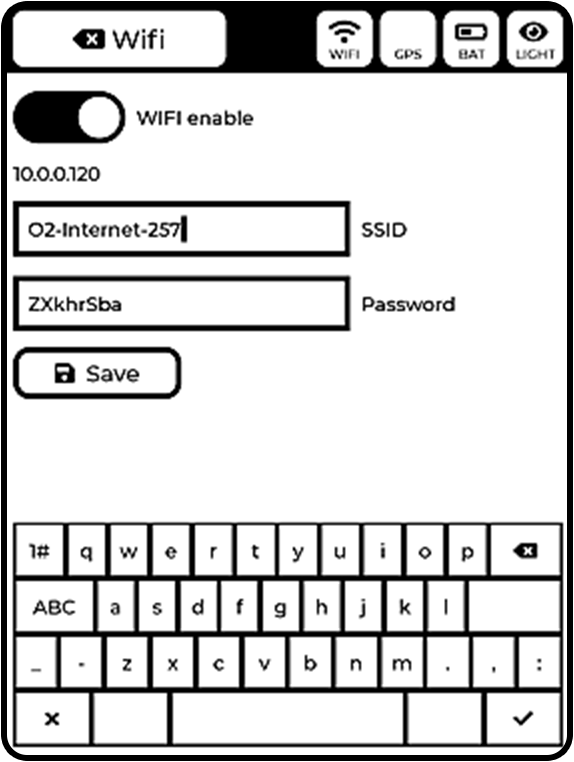

WIFI
WIFI
Settings for establishment wifi connectivity.

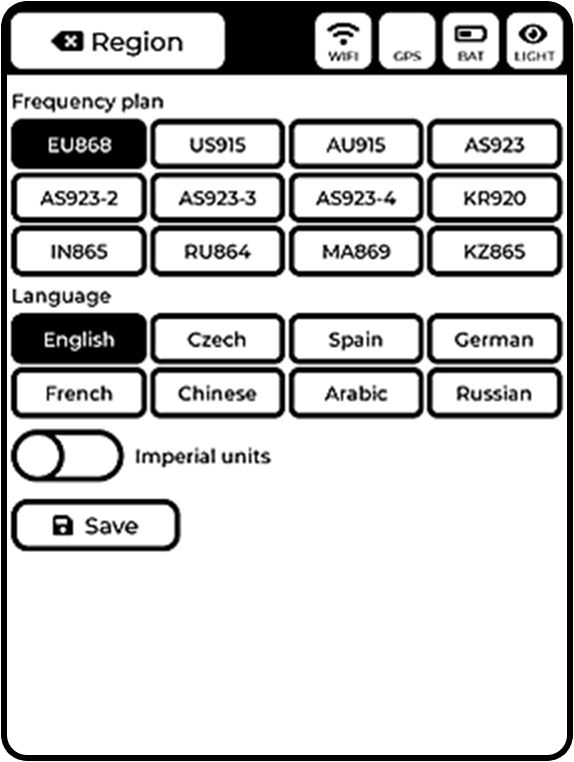

Region
Region
The system allows setting:
• Appropriate technical transmission parameters for communication between DU and BU for different regions.
• Language accommodation (overall 8 languages)

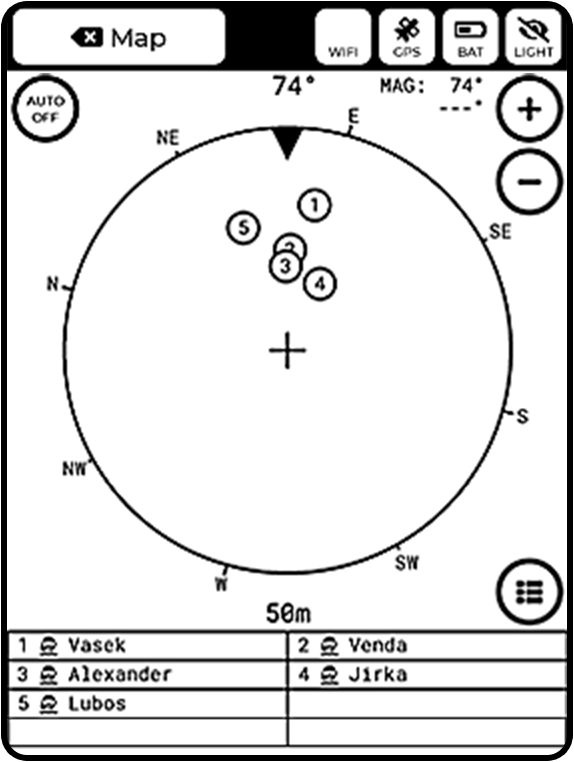

Map submenu
Map submenu
Allows to see position of divers on surface, distance from boat and azimuth. Map is equipped by Zoom functionality with scalable range 10 m to 10 000 m. Displaying a map or a table with a list of divers and their status. Compass.

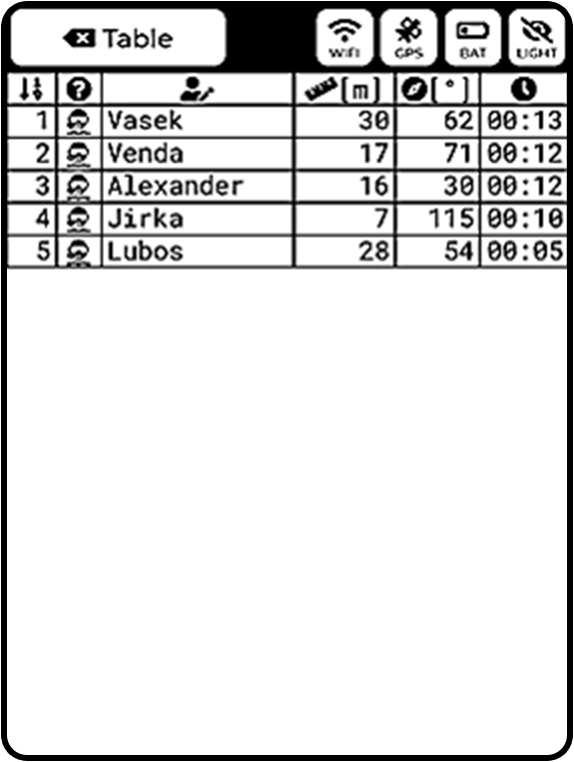

Table with divers
Table with divers
Detail information about diver position, idistance from boat, including time they are waiting for pickup.
- LoRaTM transmitter/receiver for communication with the mobile unit in ISM bands
- External quarter-wave antenna for LoRaTM transmitter/receiver
- GPS module with internal antenna
- 7.8" display (1404 x 1872 pixels) visible in direct sunlight (e-Paper) with backlight and touchscreen panel
- Power button
- Status LED indicators
- Bluetooth® 5.1 module
- WiFi 802.11 b/g/n module
- Battery
- USB C connector for charging and communication
- Acoustic siren
Mechanical dimensions:
- Length: 226 mm (8.9 inch)
- Width: 164 mm (6.5 inch)
- Height: 21 mm (0.8 inch)
- Weight : 440 g (15,5 oz)
